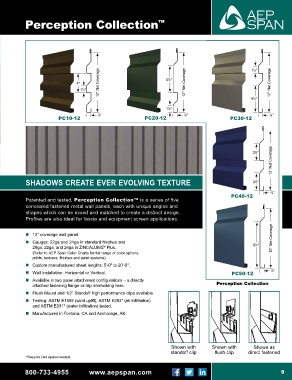

Page 11 - BR100 Product Selection Guide

Perception Collection ™

1
1
4" 12" Net Coverage 5 ⁄2" 12" Net Coverage 1 ⁄2" 12" Net Coverage
1 ⁄2"
1
5 ⁄2"
1
1 ⁄2"
1
7 ⁄8" 7 ⁄8" 7 ⁄8"
PC10-12 PC20-12 PC30-12

12" Net Coverage
3 ⁄2"
1

SEAMLESS CLEAN ATTACHMENT AND UNIQUE SHADOW LINES SHADOWS CREATE EVER EVOLVING TEXTURE 3 ⁄2"
1
7 ⁄8"
PC40-12
Patented and tested, Perception Collection™ is a series of five
concealed fastened metal wall panels, each with unique angles and
shapes which can be mixed and matched to create a distinct design.
Profiles are also ideal for fascia and equipment screen applications.

n 12" coverage wall panel.
n Gauges: 22ga and 24ga in standard finishes and 12" Net Coverage
1
20ga, 22ga, and 24ga in ZINCALUME Plus. 9 ⁄2"
®
(Refer to AEP Span Color Charts for full range of color options,
prints, textures, finishes and paint systems).
n Custom manufactured sheet lengths: 5'-0" to 20'-0".
7 ⁄8"
n Wall Installation: Horizontal or Vertical. PC50-12
n Available in two panel attachment configurations – a directly
attached fastening flange or clip interlocking hem. Perception Collection
n Flush Mount and 1/2" Standoff high performance clips available.
n Testing: ASTM E1592 (wind uplift), ASTM E283* (air infiltration)
and ASTM E331* (water infiltration) tested.
n Manufactured in Fontana, CA and Anchorage, AK.

Shown with Shown with Shown as
standoff clip flush clip direct fastened
*Requires field applied sealant.

800-733-4955 www.aepspan.com 9
