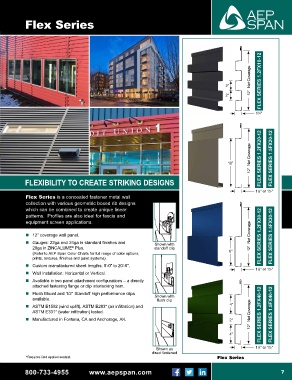

Flex Series











                                                                                                        12"  Net Coverage  FLEX SERIES 1.2FX10-12



                                                                                              2"
                                                                                              2"


                                                                                                           1 ⁄4"
                                                                                                           1






                                                                                                        12"  Net Coverage  FLEX SERIES 1.2FX20-12  FLEX SERIES 1.5FX20-12


                                                                                               10"



           FLEXIBILITY TO CREATE STRIKING DESIGNS

                                                                                                           1 ⁄4" or 1 ⁄2"
                                                                                                           1
                                                                                                                1
            Flex Series is a concealed fastener metal wall
            collection with various geometric boxed rib designs
            which can be combined to create unique linear
            patterns.  Profiles are also ideal for fascia and
            equipment screen applications.


            n  12" coverage wall panel.                                                                 12"  Net Coverage  FLEX SERIES 1.2FX30-12  FLEX SERIES 1.5FX30-12
            n  Gauges: 22ga and 24ga in standard finishes and    Shown with
              20ga in ZINCALUME  Plus.                           standoff clip
                               ®
              (Refer to AEP Span Color Charts for full range of color options,                  6"
              prints, textures, finishes and paint systems).
            n  Custom manufactured sheet lengths: 5'-0" to 20'-0".
                                                                                                           1 ⁄4" or 1 ⁄2"
                                                                                                                1
                                                                                                           1
            n  Wall Installation: Horizontal or Vertical.
            n  Available in two panel attachment configurations – a directly
              attached fastening flange or clip interlocking hem.
            n  Flush Mount and 1/2" Standoff high performance clips
              available.                                         Shown with
                                                                  flush clip
            n  ASTM E1592 (wind uplift), ASTM E283* (air infiltration) and                      4"
              ASTM E331* (water infiltration) tested.
            n  Manufactured in Fontana, CA and Anchorage, AK.                                   2"      12"  Net Coverage  FLEX SERIES 1.2FX40-12  FLEX SERIES 1.5FX40-12

                                                                                                4"


                                                                                                           1
                                                                                                                1
                                                                 Shown as                                  1 ⁄4" or 1 ⁄2"
                                                                direct fastened
            *Requires field applied sealant.                                               Flex Series
