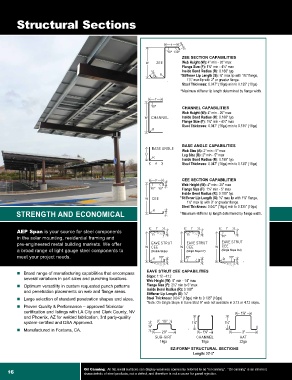

Structural Sections
F S
90° 130°
ZEE SECTION CAPABILITIES
W ZEE Web Height (W): 4″ min - 20" max
Flange Size (F): 1⅝″ min - 4½″ max
Inside Bend Radius (R): 0.188″ typ.
S R * Stiffener Lip Length (S): ¾″ max lip with 1⅝″ flange,
1¼″ max lip with 2″ or greater flange.
Steel Thickness: 0.047″ (18ga) min to 0.135″ (10ga)
* Maximum stiffener lip length determined by flange width.
F
90° CHANNEL CAPABILITIES
Web Height (W): 4″ min - 20″ max
W CHANNEL Inside Bend Radius (R): 0.188″ typ.
Flange Size (F): 1⅝″ min - 4½″ max
Steel Thickness: 0.047″ (18ga) min to 0.135″ (10ga)
R
BASE ANGLE CAPABILITIES
BASE ANGLE Web Size (A): 2″ min - 5″ max
B Leg Size (B): 2″ min - 5″ max
R
Inside Bend Radius (R): 0.188″ typ.
A Steel Thickness: 0.047" (18ga) min to 0.135" (10ga)
F CEE SECTION CAPABILITIES
S Web Height (W): 4″ min - 20″ max
90° 90° Flange Size (F): 1⅝″ min - 5″ max
Inside Bend Radius (R): 0.188″ typ.
W CEE * Stiffener Lip Length (S): ⅝″ max lip with 1⅝″ flange,
1¼″ max lip with 3″ or greater flange.
Steel Thickness: 0.047″ (18ga) min to 0.135″ (10ga)
STRENGTH AND ECONOMICAL R S * Maximum stiffener lip length determined by flange width.
F F F
AEP Span is your source for steel components S S S
in the solar mounting, residential framing and R R 90°
pre-engineered metal building markets. We offer W EAVE STRUT W EAVE STRUT W EAVE STRUT
CEE
CEE
CEE
a broad range of light gauge steel components to (Double Slope) (Single Slope In*) (Single Slope Out)
meet your project needs. R 90° 90° 90°
S S R S
n Broad range of manufacturing capabilities that encompass EAVE STRUT CEE CAPABILITIES
several variations in part sizes and punching locations. Slope: 1:12 - 4:12
Web Height (W): 8″ min - 14″ max
n Optimum versatility in custom requested punch patterns Flange Size (F): 2½″ min to 5″ max
and penetration placements on web and flange areas. Inside Bend Radius (R): 0.188″
Stiffener Lip Length (S): ⅞″
n Large selection of standard penetration shapes and sizes. Steel Thickness: 0.047" (18ga) min to 0.135″ (10ga)
*Note: On Single Slope In Eave Strut 8" web not available in 3:12 or 4:12 slope.
n Proven Quality & Performance – approved fabricator
certification and listings with LA City and Clark County, NV 1 ⁄8"
5
and Phoenix, AZ for welded fabrication, 3rd party-quality
1
system-certified and DSA Approved. 1 ⁄2" 1 ⁄2" 1 ⁄2"
1
1
5 ⁄8"
n Manufactured in Fontana, CA. 2 ⁄2" 1 ⁄8" 3"
1
5
SUB-GIRT CHANNEL HAT
18ga 18ga 22ga
EZ-FORM ® STRUCTURAL SECTIONS
Length: 20'-0"
Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent
16 characteristic of steel products, not a defect, and therefore is not a cause for panel rejection.
