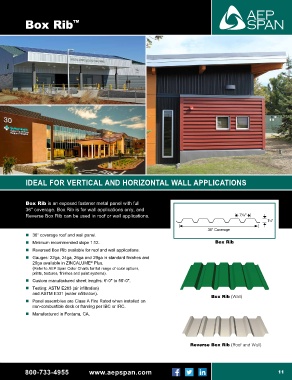

Box Rib ™
IDEAL FOR VERTICAL AND HORIZONTAL WALL APPLICATIONS
Box Rib is an exposed fastener metal panel with full
36" coverage. Box Rib is for wall applications only, and
Reverse Box Rib can be used in roof or wall applications. 7 ⁄16"
3
1 ⁄2"
1
36" Coverage
n 36" coverage roof and wall panel.
n Minimum recommended slope 1:12. Box Rib
n Reversed Box Rib available for roof and wall applications.
n Gauges: 22ga, 24ga, 26ga and 29ga in standard finishes and
20ga available in ZINCALUME Plus.
®
(Refer to AEP Span Color Charts for full range of color options,
prints, textures, finishes and paint systems).
n Custom manufactured sheet lengths: 6'-0" to 50'-0".
n Testing: ASTM E283 (air infiltration)
and ASTM E331 (water infiltration).
Box Rib (Wall)
n Panel assemblies are Class A Fire Rated when installed on
non-combustible deck or framing per IBC or IRC.
n Manufactured in Fontana, CA.
Reverse Box Rib (Roof and Wall)
