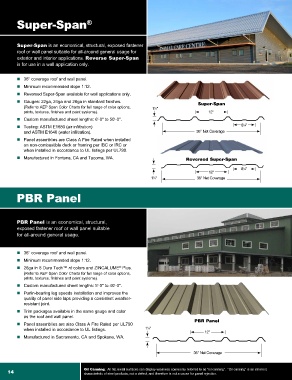

Page 16 - BR100 Product Selection Guide

Super-Span ®

Super-Span is an economical, structural, exposed fastener
roof or wall panel suitable for all-around general usage for
exterior and interior applications. Reverse Super-Span
is for use in a wall application only.

n 36" coverage roof and wall panel.
n Minimum recommended slope 1:12.
n Reversed Super-Span available for wall applications only.
n Gauges: 22ga, 24ga and 26ga in standard finishes. Super-Span
(Refer to AEP Span Color Charts for full range of color options, 1 ⁄4"
1
prints, textures, finishes and paint systems). 12"
n Custom manufactured sheet lengths: 6'-0" to 50'-0".
1
n Testing: ASTM E1680 (air infiltration) 8 ⁄4"
and ASTM E1646 (water infiltration). 36" Net Coverage
n Panel assemblies are Class A Fire Rated when installed
on non-combustible deck or framing per IBC or IRC or
when installed in accordance to UL listings per UL790.
n Manufactured in Fontana, CA and Tacoma, WA. Reversed Super-Span

8 ⁄4"
1
12"
1 ⁄4" 36" Net Coverage
1
PBR Panel

PBR Panel is an economical, structural,
exposed fastener roof or wall panel suitable
for all-around general usage.

n 36" coverage roof and wall panel.
n Minimum recommended slope 1:12.
n 26ga in 8 Dura Tech™ nt colors and ZINCALUME Plus.
®
(Refer to AEP Span Color Charts for full range of color options,
prints, textures, finishes and paint systems).
n Custom manufactured sheet lengths: 5'-0" to 40'-0".
n Purlin-bearing leg speeds installation and improves the
quality of panel side laps providing a consistent weather-
resistant joint.
n Trim packages available in the same gauge and color
as the roof and wall panel.
PBR Panel
n Panel assemblies are also Class A Fire Rated per UL790
1
when installed in accordance to UL listings. 1 ⁄4"
12"
n Manufactured in Sacramento, CA and Spokane, WA.

36" Net Coverage

Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent
14 characteristic of steel products, not a defect, and therefore is not a cause for panel rejection.
