Reversed Box Rib™ Metal Roofing and Siding

This slideshow requires JavaScript.

View Color Options

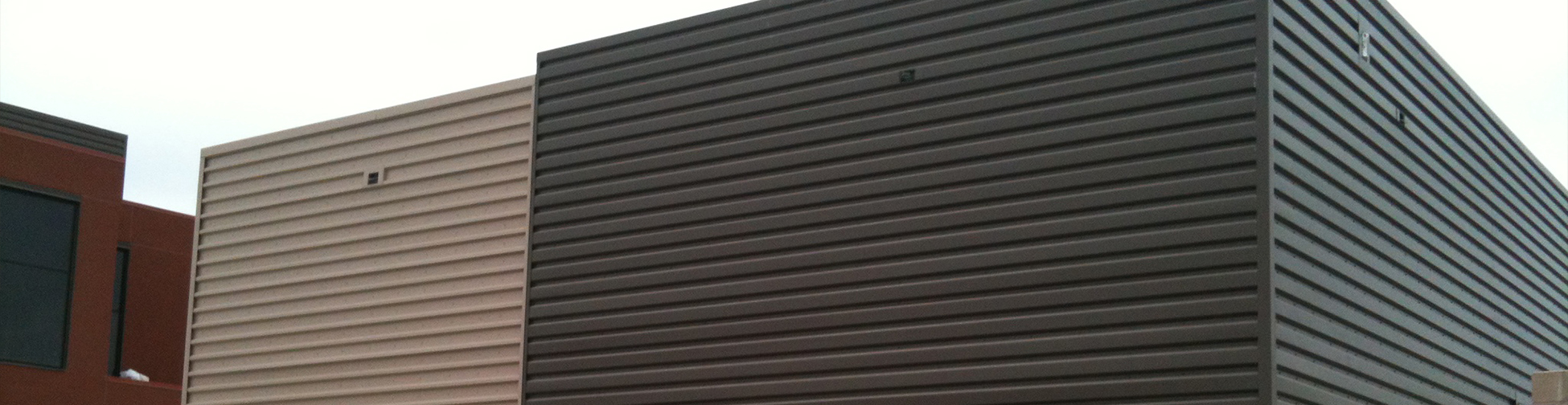

Reversed Box Rib™ metal roofing and siding is an exposed fastened metal panel with a 36” net coverage. This panel is ideal for commercial, industrial, retail, mixed-use, civic and even residential applications.

With this long-lasting, durable, and sustainable metal panel, you’ll find it also comes in several energy-efficient colors and paint systems.

⇒ VISIT OUR PROJECT GALLERY ⇐

Reversed Box Rib offers a unique, yet flexible design when combined with other building materials.

AEP-Guide-Large-HomeRoof assemblies are Class A Fire Rated when installed on non-combustible deck or framing per IBC, IRC, or when installed in accordance with UL listings (UL790). Siding assemblies rated for fire resistance (UL263) when installed in accordance with UL listings.

Get Inspired!

Download the AEP Span Product Selection Guide and Color Design Guide.
AEP Span Color and Panel Matrix PDF | RTF

  • 36″ coverage metal roof and siding.
  • Minimum recommended slope 1:12.  (roof applications – AEP Span Underlayment HT  PDF | RTF available).
  • Gauges: 22ga, 24ga, and 26ga in standard finishes and 20ga available in ZINCALUME® Plus.
  • Custom manufactured panel lengths: 6′-0″ to 50′-0″.
  • Perforation PDF | RTF options available for an additional charge.
  • Matching fiberglass panels available.
  • Testing: ASTM E283 (air infiltration) and ASTM E331 (water infiltration). All testing performed by accredited third-party.
  • All structural performance data is contained within Building Code Approval Report.
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

⇒Click Here for Building Code Approval Reports. IAPMO-logo

  • Standard Offer EPD (pdf) (rtf)
  • Domestically Sourced High Recycled Content EPD (pdf) (rtf)
  • HPD 3rd-Party Verified for ZINCALUME® Plus coated products (pdf) (rtf)
  • LEED v3 Regional Material (pdf)
  • LEED v3 Recycled Content Letter (pdf) (rtf)
  • LEED v4 Recycled Content Letter (pdf) (rtf)

⇒Click Here for additional LEED & LBC Information.

  • Dura Tech™ 5000/Dura Tech® mx Warranty (PVDF) (pdf) (rtf)
  • Dura Tech® nt Warranty (pdf) (rtf)
  • ZINCALUME Plus Warranty (pdf) (rtf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

⇒Click Here for additional Color and Warranty Information.
