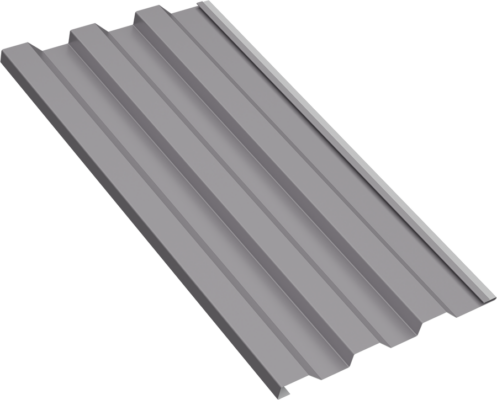

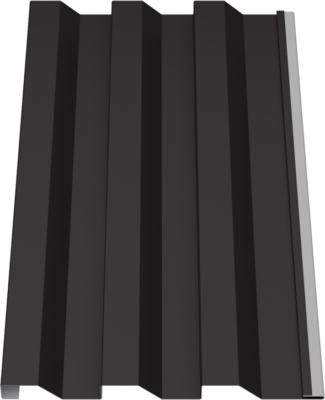

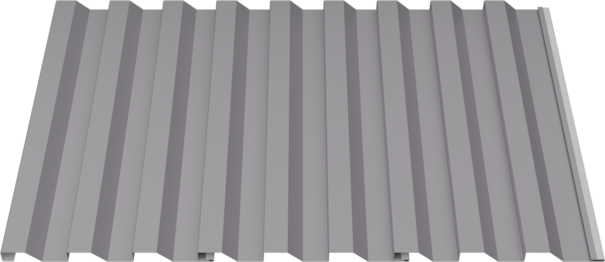

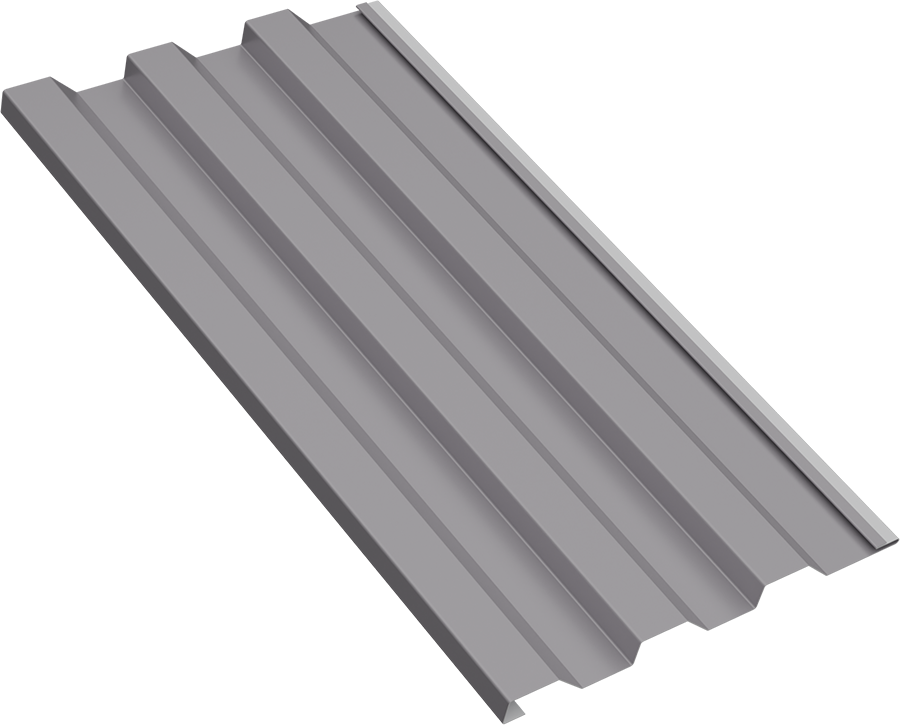

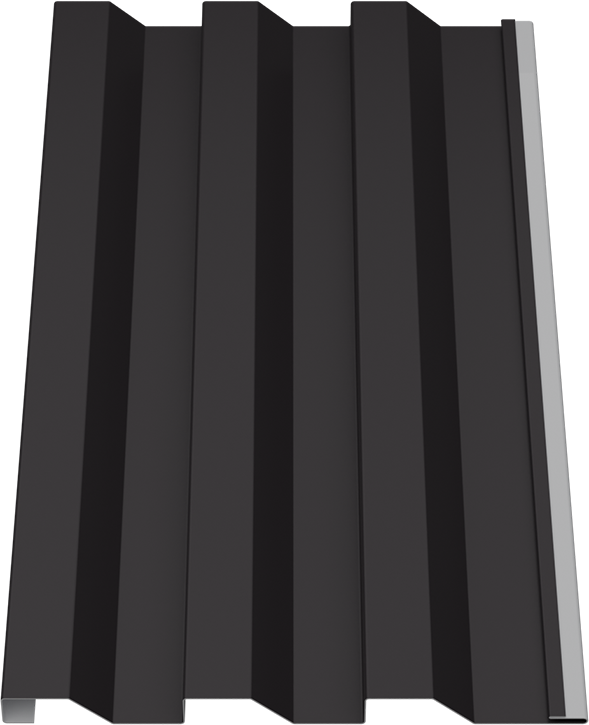

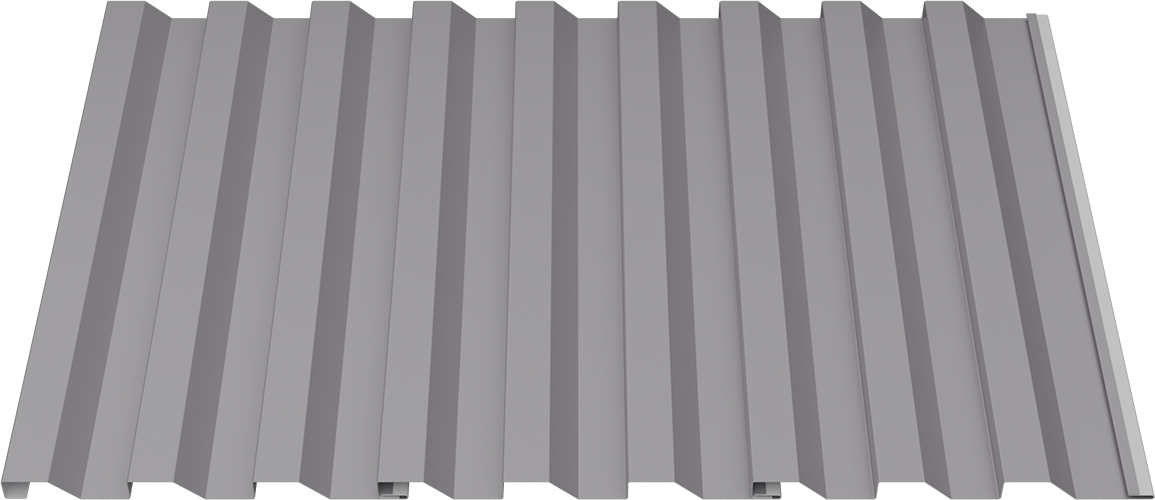

Perception Collection® Metal Siding

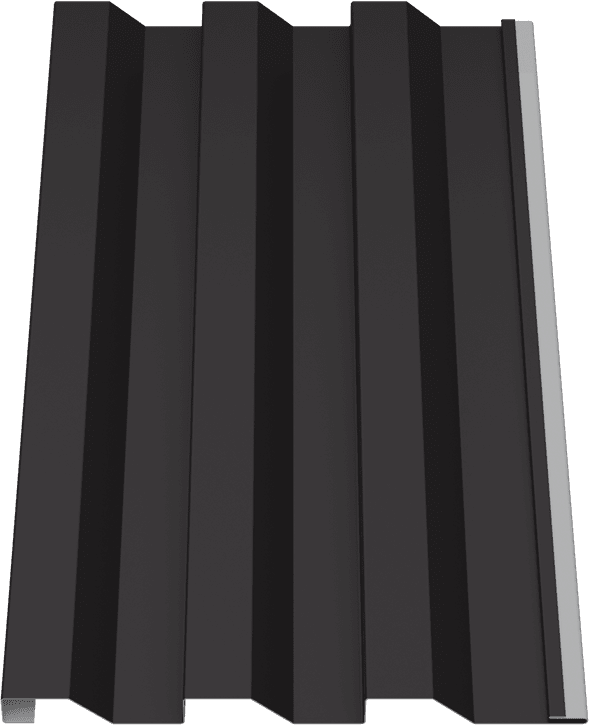

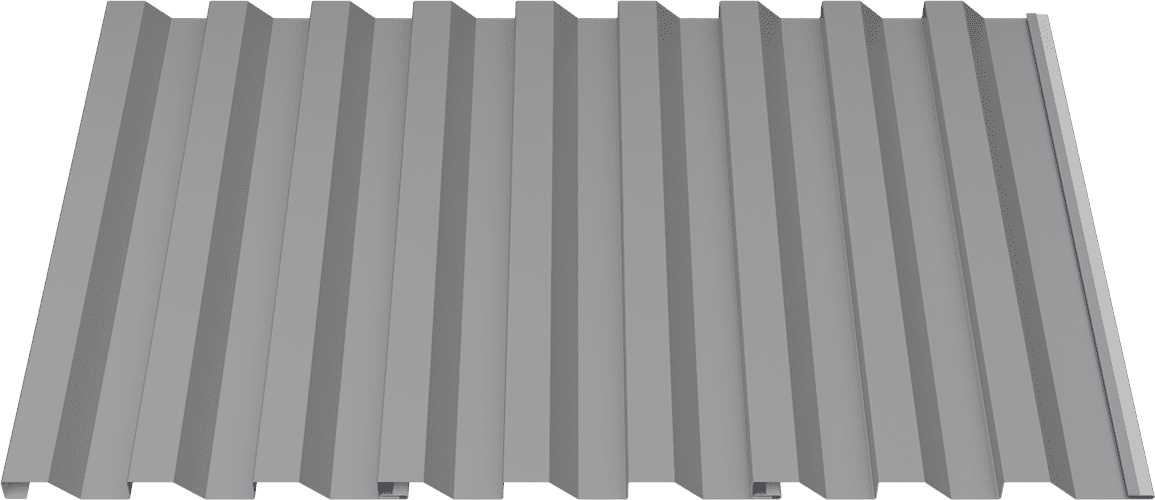

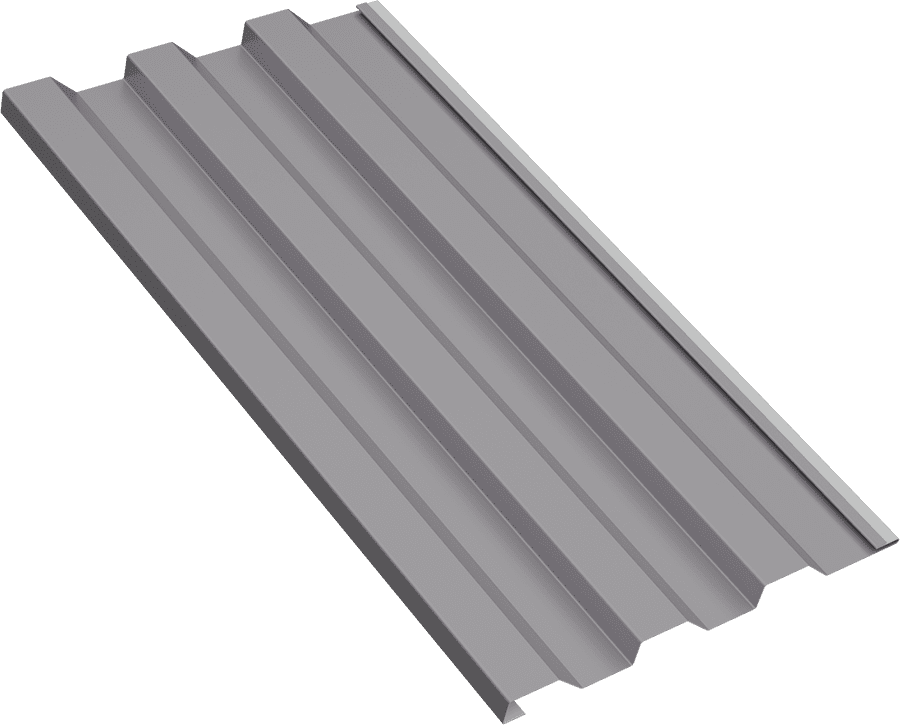

Perception Collection® metal siding consist of five concealed fastened metal siding panels with unique geometric angles and rib patterns which can be combined to create a distinct design. The shadow effect of these panels, whether used in a vertical or horizontal siding applications, evolves as the day progresses–it builds texture and changes design perception.

Perception Collection is a great profile for civic, commercial, residential, retail, and mixed-use building projects. This long-lasting, durable, and sustainable metal panel also comes in several energy-efficient colors and paint systems. Perception Collection offers architects and building owners a unique yet flexible design when combined with other building materials.

Order Samples
Request Quote

Product Information

  • Panel Type: Concealed fastener metal siding
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 12″
  • Metal Thickness (Gauge): 22, 20
  • Minimum Slope: N/A
  • Orientation: Horizontal or Vertical
  • Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)

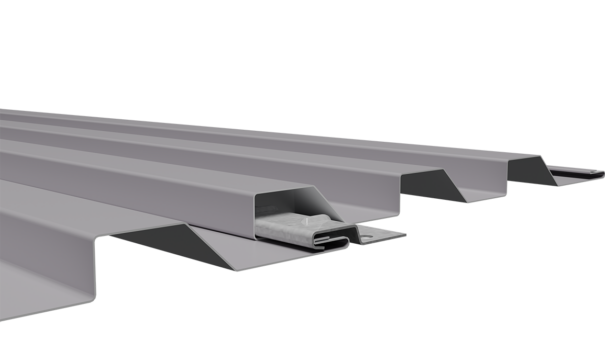

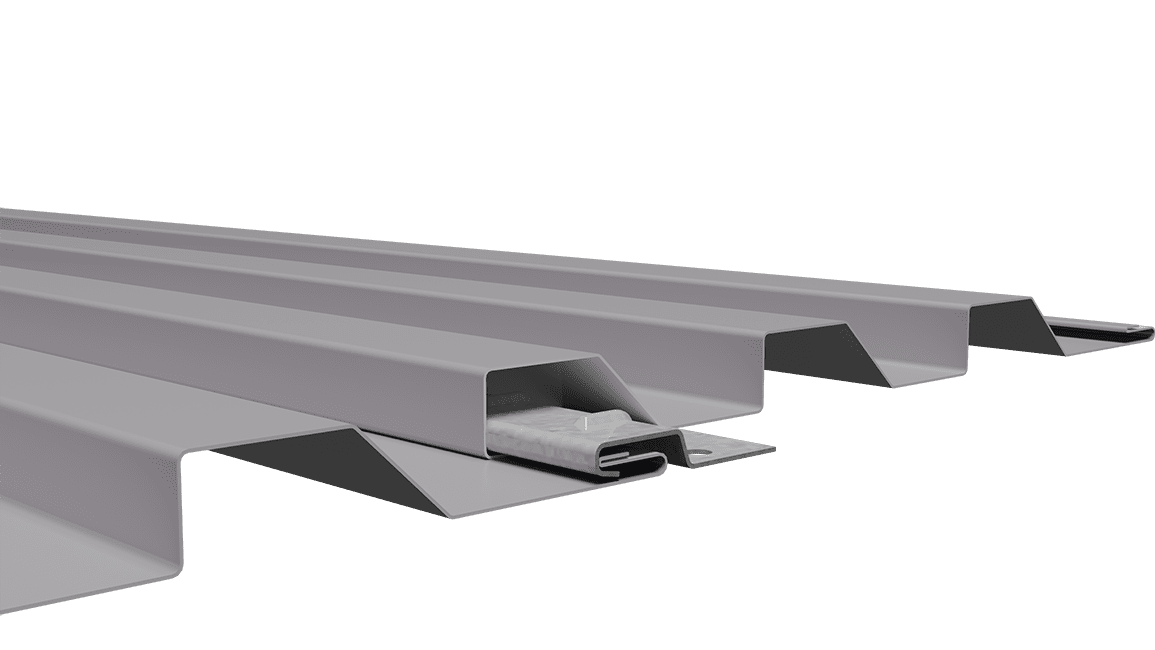

  • Panel Attachment: Concealed Screw or Concealed Clip
  • Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), Ul 263 (Fire Resistance), ER 309 Building Code Evaluation Report
  • Panel Height: 7/8″
  • Rib Style: Irregular Trapezoidal
  • Primary Application: Commercial and Architectural Siding, Mix-and-Match Siding
  • Standard Configuration: As shown
  • Factory Applied Sealant: No
  • Optional Configuration: N/A
  • Available Panel Lengths: 5′-0″ to 40′-0″
  • Other Options (inquire): Direct Fastened or Clip Attached
  • Panel Variations: 5 Interchangeable Panel Designs
  • Clip Options: 1/2″ Standoff high-performance clip, Flush mount clip

Product Resources

  • Perception Collection Product Sheet with Load Tables (pdf)
  • Perception Collection Panel Dimensions – Clip Attached (pdf)
  • Perception Collection Panel Dimensions – Direct Fastened (pdf)
  • Perception Collection Installation Guide – Horizontal (pdf)
  • Perception Collection Installation Guide – Vertical (pdf)
  • Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
  • Perception Collection Guide Specifications  (pdf) (doc)
  • Building Code Approval Report (Evaluation Report ER-0309)

Product Option and Accessory Resources

  • Fastener Selection Guide (pdf)
  • AEP Span Underlayment HT (pdf)

Color Resources

  • Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
  • Color Performance Data (SRI and LRV Values) (pdf)

Sustainability Resources

  • Standard Offer EPD (pdf)
  • Domestically Sourced High Recycled Content EPD (pdf)
  • HPD 3rd-Party Verified for ZINCALUME® Plus coated products (pdf)
  • Complete AEP Span Material Library(zip)
  • Complete AEP Span Material Image Files(zip)
  • Perception Collection® PC10-12 Revit (zip)
  • Perception Collection® PC20-12 Revit (zip)
  • Perception Collection® PC30-12 Revit (zip)
  • Perception Collection® PC40-12 Revit (zip)
  • Perception Collection® PC50-12 Revit (zip)
  • Perception Collection® Horizontal Orientation AutoCAD (zip)
  • Perception Collection® Vertical Orientation AutoCAD (zip)
  • Miscellaneous AutoCAD Details (zip)
  • Finish Warranty PVDF Paint System – Dura Tech™ 5000 & Dura Tech™ mx Warranty (pdf)
  • Corrosion Warranty – ZINCALUME® Plus Warranty (pdf)

Cool DURA TECH™ 5000 (22 & 24 Gauge)

Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.

Regal White

Parchment

Sierra Tan

Pebble

Walnut

Weathered Copper

Dark Bronze

Terra-Cotta

Colonial Red

Old Town Gray

Zinc Gray

Slate Gray

Midnight Bronze

Matte Black

Tahoe Blue

Regal Blue

Sage Green

Leaf Green

Forest Green

Cool DURA TECH™ mx (22 & 24 Gauge)

Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.

Metallic Silver

Silversmith

ZACtique® II

Metallic Champagne

Metallic Copper

Cool DURA TECH™ nt (26 Gauge)

Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.

No available colors in this category.

Premium Colors (24 & 26 Gauge)

Vintage®

Unpainted Products (26 - 20 Gauge)

ZINCALUME® Plus

Uncoated and Unpainted Products (22 Gauge)

No available colors in this category.

Specialty Finishes and Custom Colors

AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.

Specialty Finishes Catalog
Custom Color Inquiry
