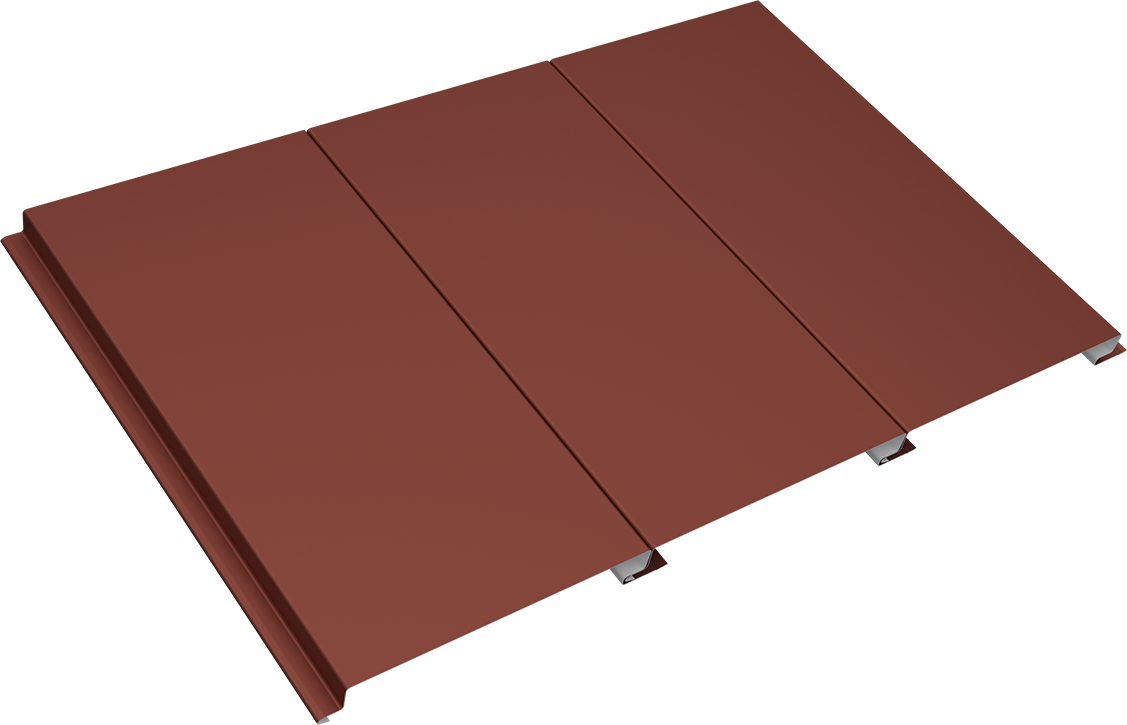

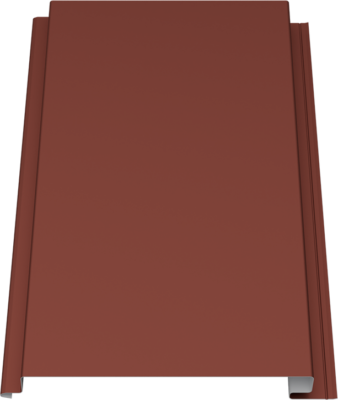

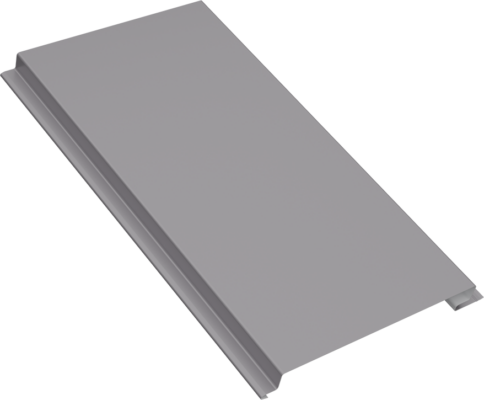

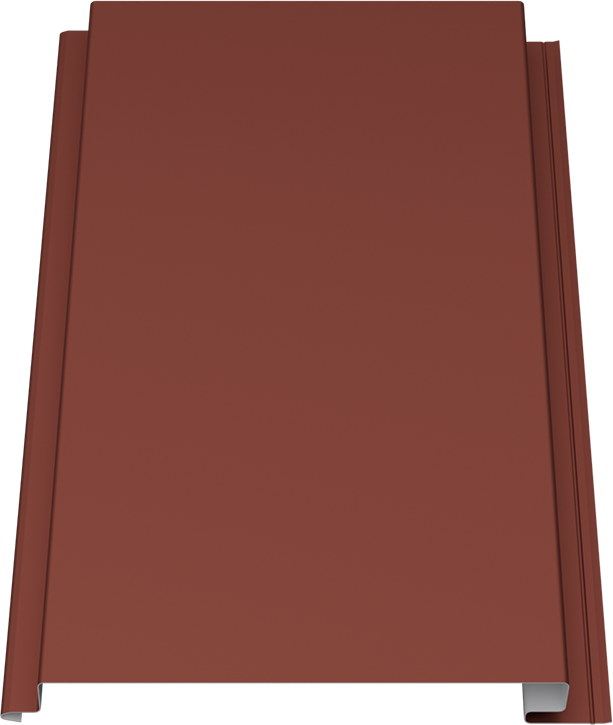

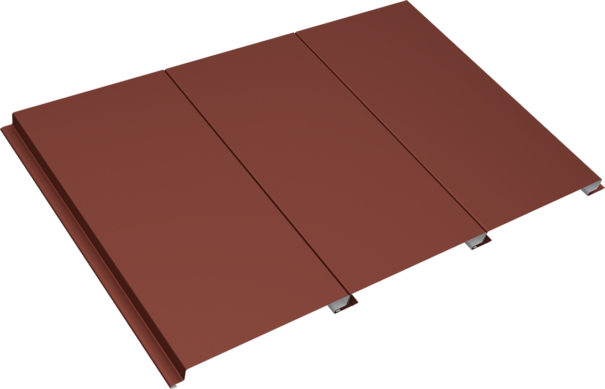

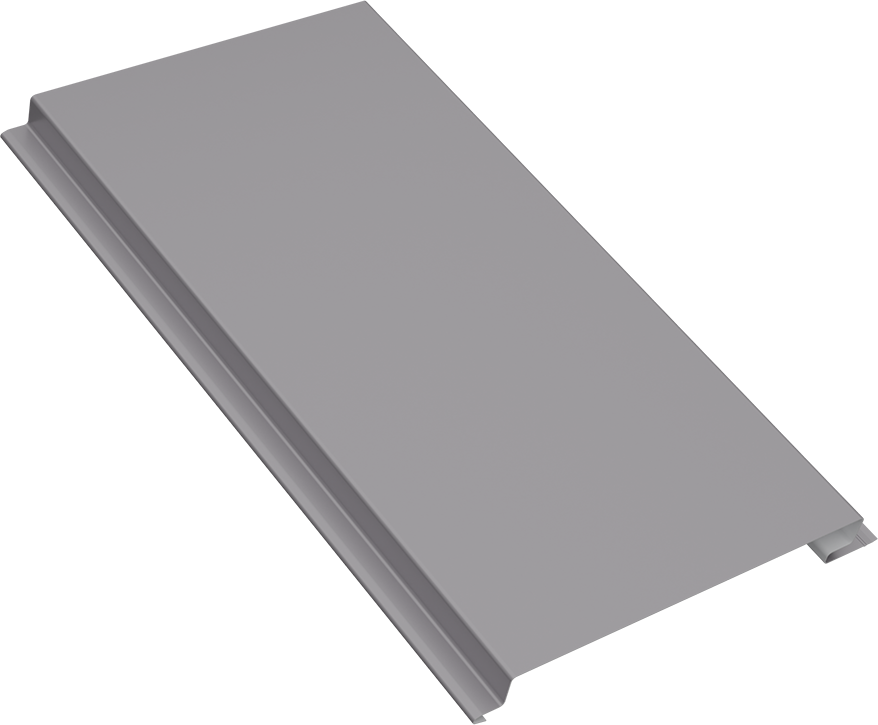

Prestige Series® metal siding offers a unique interchangeable set of square, concealed fastener panels. With four separate reveal options, including flush, the panels provide 12″ coverage and a 1.5″ panel height. This collection of panels is ideal for commercial and architectural siding seeking a flush or mix-and-match façade design. The panels are available in 0″, 1″, 2″, and 6″ reveals. Prestige Series is a solution for vertical or horizontal exterior and interior siding, fascia, equipment screens, soffit, and as a ceiling panel application.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: N/A
- Orientation: Horizontal or Vertical
- Paint System: Dura Tech® 5000 / Dura Tech® mx (PVDF – 24, 22ga)

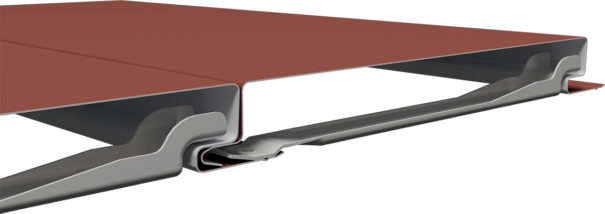

- Panel Attachment: Concealed Screw or Concealed Clip
- Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), Ul 263 (Fire Resistance), ER 309 Building Code Evaluation Report
- Panel Height: 1 1/2″
- Rib Style: Flush (no rib), Square
- Primary Application: Commercial and Architectural Siding, Mix-and-Match Siding, Soffit Applications
- Standard Configuration: Flat
- Factory Applied Sealant: No
- Optional Configuration: 1 or 2 Pencil Ribs, Wave, 1″ Reveal, 2″ Reveal, 6″ Reveal
- Available Panel Lengths: 6′-0” to 25′-0”
- Other Options (inquire): Perforation, Stucco Embossed, Aluminum .040″ substrate (No reveal)
- Panel Variations: 4 Interchangeable Reveal Options
Documents & Resources
Product Resources
- Prestige Series® Product Sheet with Load Tables (pdf)
- Prestige Series® Panel Dimensions (pdf)
- Prestige Series® Installation Guide – Horizontal (pdf)
- Prestige Series® Installation Guide – Vertical (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Prestige Series® Guide Specifications (pdf)
- Prestige Series® Clip Technical Bulletin (pdf)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
- Perforation Data Sheet (pdf)
- Aluminum Product Sheet (pdf)
- Fastener Selection Guide (pdf)
- AEP Span Underlayment HT (pdf)
Color Resources
- Architectural Color Chart (Dura Tech® 5000/mx) (pdf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: N/A
- Orientation: Horizontal or Vertical
- Paint System: Dura Tech® 5000 / Dura Tech® mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Screw or Concealed Clip
- Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), Ul 263 (Fire Resistance), ER 309 Building Code Evaluation Report
- Panel Height: 1 1/2″
- Rib Style: Flush (no rib), Square
- Primary Application: Commercial and Architectural Siding, Mix-and-Match Siding, Soffit Applications
- Standard Configuration: Flat
- Factory Applied Sealant: No
- Optional Configuration: 1 or 2 Pencil Ribs, Wave, 1″ Reveal, 2″ Reveal, 6″ Reveal
- Available Panel Lengths: 6′-0” to 25′-0”
- Other Options (inquire): Perforation, Stucco Embossed, Aluminum .040″ substrate (No reveal)
- Panel Variations: 4 Interchangeable Reveal Options
Documents & Resources
Product Resources
- Prestige Series® Product Sheet with Load Tables (pdf)
- Prestige Series® Panel Dimensions (pdf)
- Prestige Series® Installation Guide – Horizontal (pdf)
- Prestige Series® Installation Guide – Vertical (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Prestige Series® Guide Specifications (pdf)
- Prestige Series® Clip Technical Bulletin (pdf)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
- Perforation Data Sheet (pdf)
- Aluminum Product Sheet (pdf)
- Fastener Selection Guide (pdf)
- AEP Span Underlayment HT (pdf)
Color Resources
- Architectural Color Chart (Dura Tech® 5000/mx) (pdf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
Colors
Cool DURA TECH® 5000
Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.
Cool DURA TECH® mx
Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.
Cool DURA TECH® nt
Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.
No available colors in this category.
Premium Colors
Unpainted Products
Uncoated and Unpainted Products
No available colors in this category.
Specialty Finishes and Custom Colors
AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.
