SpanSeam™ Metal Roofing

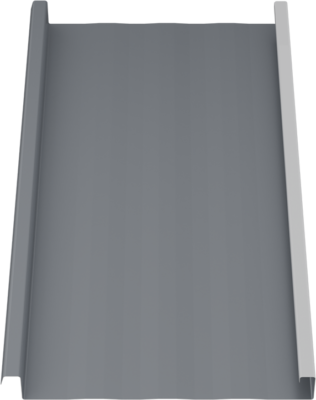

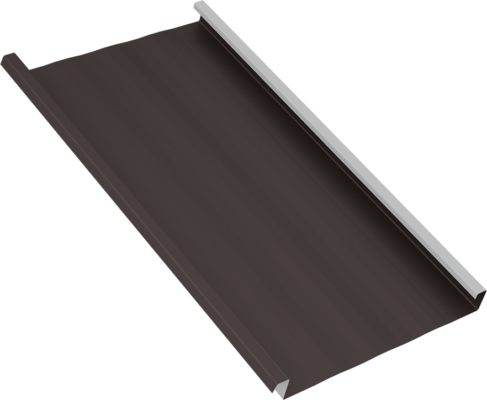

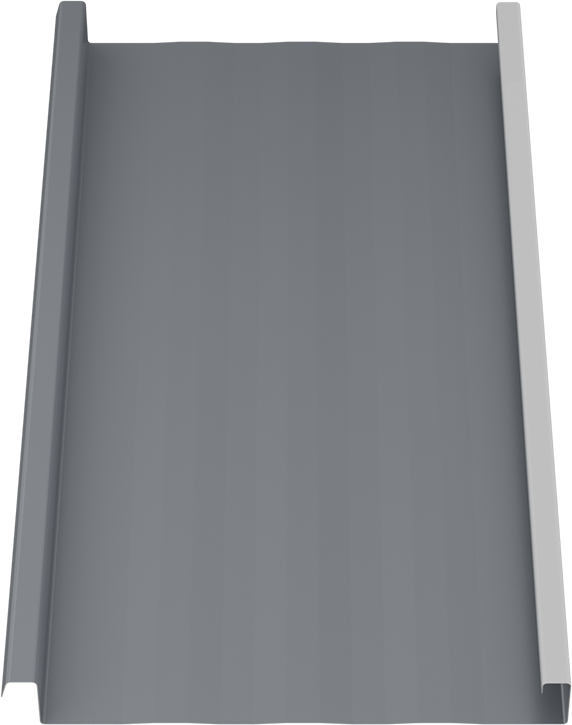

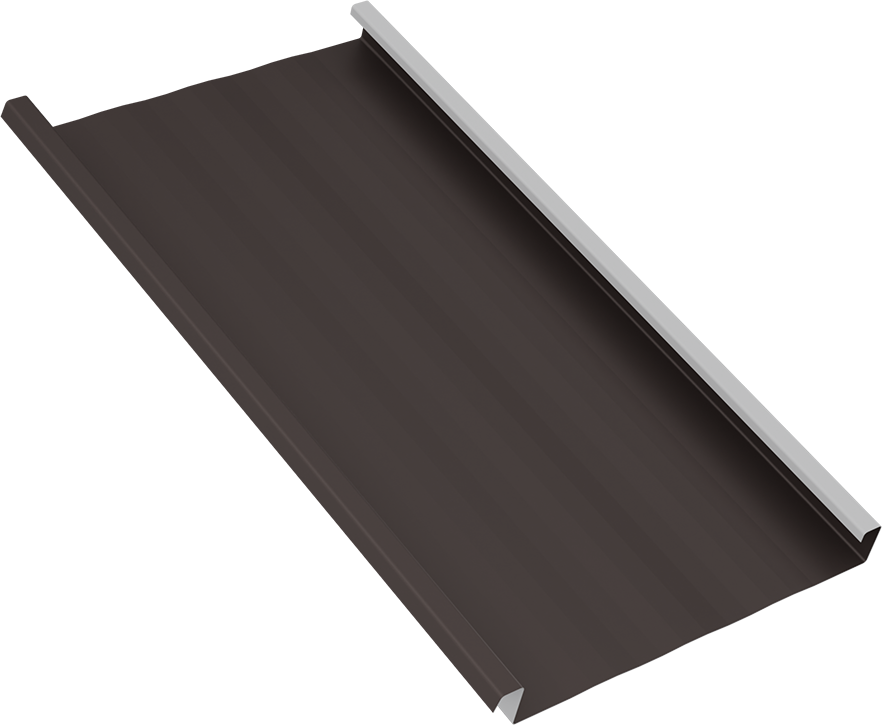

SpanSeam™ metal roofing is a 16″ wide mechanically seamed concealed fastener roofing panel with a narrow 2″ high rib.  The weather-tight design and modern aesthetics make it ideal for commercial and architectural roofing applications. The panel is available as a flat pan or striated option.

Product Information

  • Panel Type: Concealed fastener metal roofing (standing seam)
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 12″, 16″
  • Metal Thickness (Gauge): 24, 22
  • Minimum Slope:  1⁄4:12
  • Orientation: Vertical
  • Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)

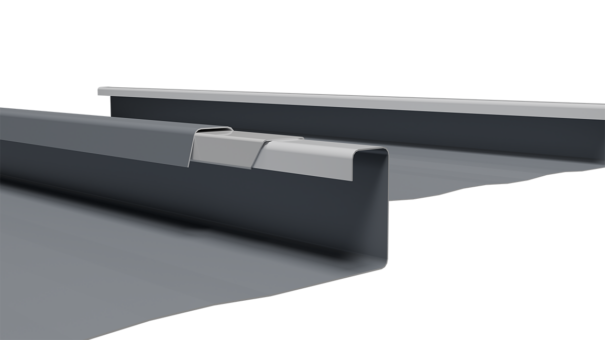

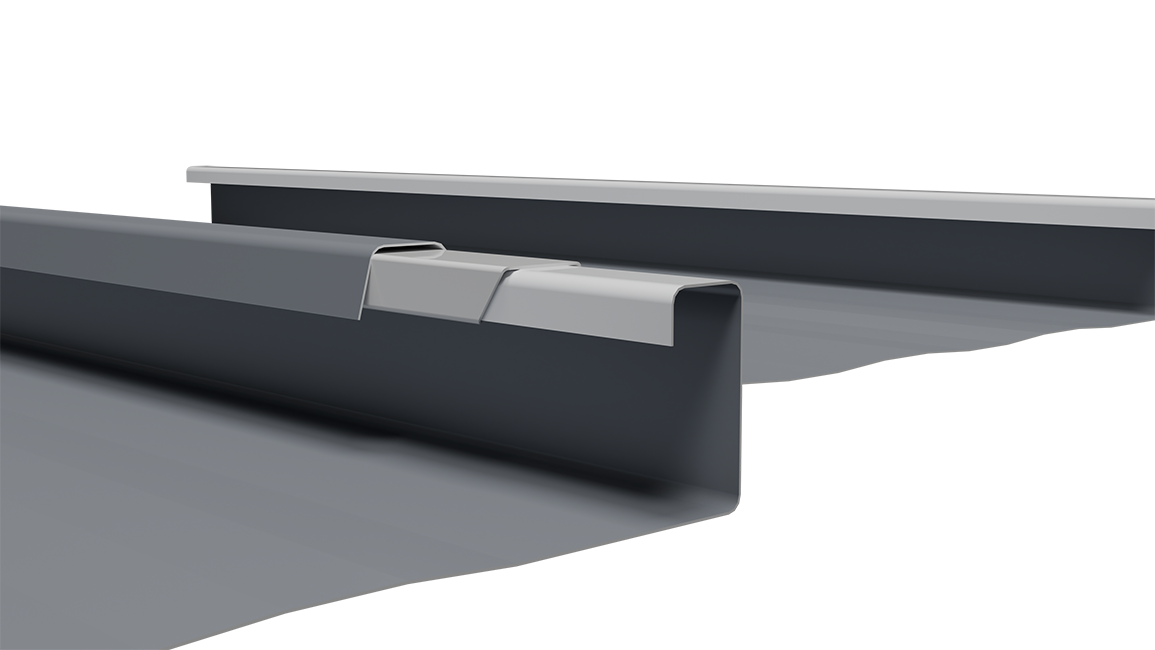

  • Panel Attachment: Mechanically Seamed with Concealed Clips
  • Performance Certification: UL 580 (Class 90 Wind Uplift), UL 790 (Class A Fire Rated), ASTM E1592 (Wind Uplift), ASTM E1680 (Air infiltration), ASTM E1646 and E2140 (Water Infiltration), UL2218 (Class 4 Impact Resistance – Hail), ER 309 Building Code Evaluation Report
  • Panel Height: 2″
  • Rib Style: Standing Seam
  • Primary Application: Commercial and Architectural Roofing
  • Standard Configuration: Striated
  • Factory Applied Sealant: Yes

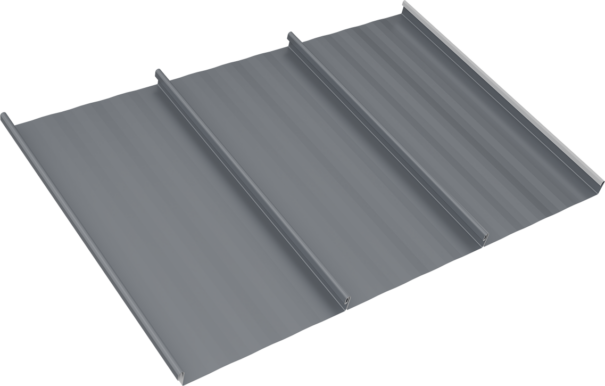

  • Optional Configuration: 2 Pencil Ribs, Flat Pan
  • Available Panel Lengths: 6′-0″ to 45′-0″
  • Other Options (inquire): Factory Notching, Factory Swaged

Product Resources

  • Span Seam™ Product Sheet with Load Tables (pdf)
  • Span Seam™ Panel Dimensions (pdf)
  • Span Seam™ Installation Guide (pdf)
  • Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
  • Span Seam™ Guide Specifications (pdf) (doc)
  • Building Code Approval Report (Evaluation Report ER-0309)

Product Option and Accessory Resources

  • Fastener Selection Guide (pdf)
  • AEP Span Underlayment HT (pdf)

Color Resources

  • Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
  • Commercial Color Chart (Dura Tech™ nt) (pdf | rtf)
  • Color Performance Data (SRI and LRV Values) (pdf)

Sustainability Resources

  • Standard Offer EPD (pdf)
  • Domestically Sourced High Recycled Content EPD (pdf)
  • HPD 3rd-Party Verified for ZINCALUME® Plus coated products (pdf)
  • Complete AEP Span Material Library(zip)
  • Complete AEP Span Material Image Files(zip
  • Span Seam™ Revit (zip)
  • Span Seam™ AutoCAD (zip)
  • Miscellaneous AutoCAD Details (zip)
  • Finish Warranty PVDF Paint System – Dura Tech™ 5000 & Dura Tech™ mx Warranty (pdf)
  • Corrosion Warranty – ZINCALUME® Plus Warranty (pdf)
  • Full System Weathertight Warranty Available By Request (Sample Warranty | Inquire)
  • Side Seam Weathertight Warranty Available By Request (Sample Warranty | Inquire)

Cool DURA TECH™ 5000 (22 & 24 Gauge)

Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.

Regal White

Parchment

Sierra Tan

Pebble

Walnut

Weathered Copper

Dark Bronze

Terra-Cotta

Colonial Red

Old Town Gray

Zinc Gray

Slate Gray

Midnight Bronze

Matte Black

Tahoe Blue

Regal Blue

Sage Green

Leaf Green

Forest Green

Cool DURA TECH™ mx (22 & 24 Gauge)

Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.

Metallic Silver

Silversmith

ZACtique® II

Metallic Champagne

Metallic Copper

Cool DURA TECH™ nt (26 Gauge)

Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.

No available colors in this category.

Premium Colors (24 & 26 Gauge)

Vintage®

Unpainted Products (26 - 20 Gauge)

ZINCALUME® Plus

Uncoated and Unpainted Products (22 Gauge)

No available colors in this category.

Specialty Finishes and Custom Colors

AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.
