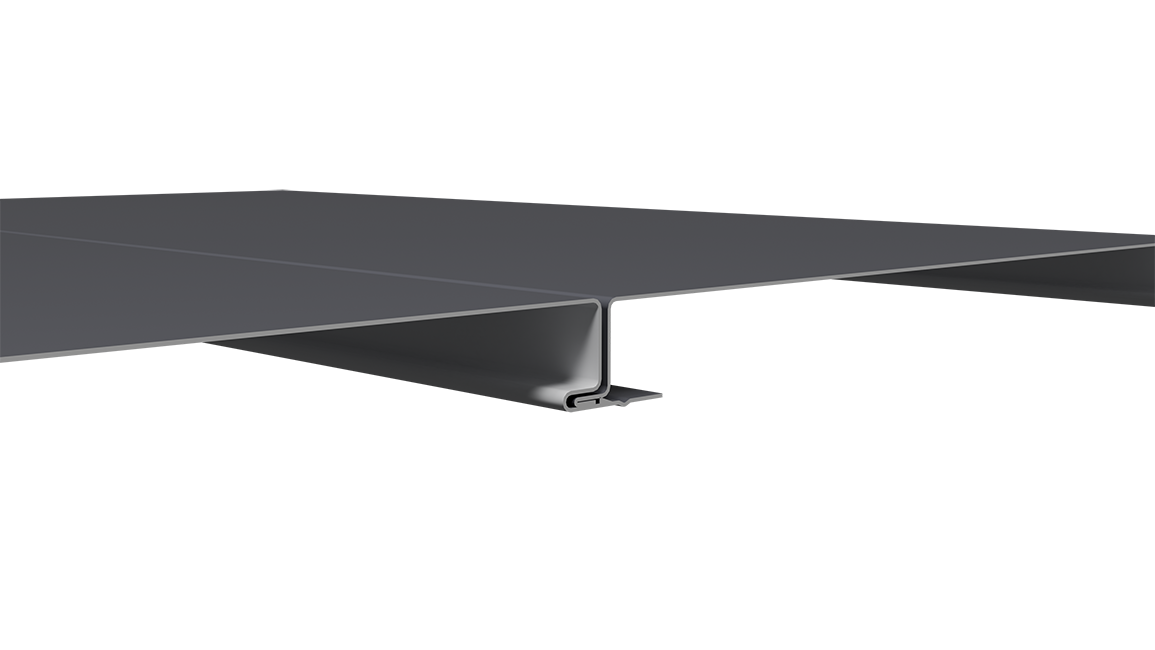

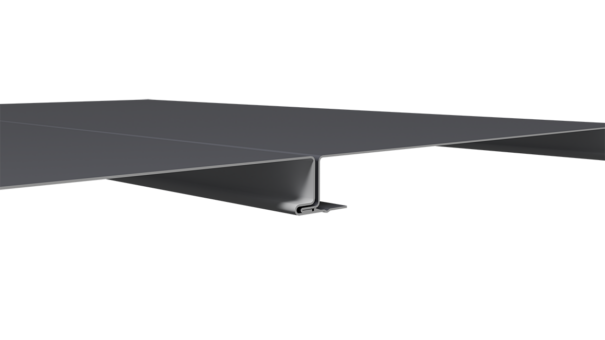

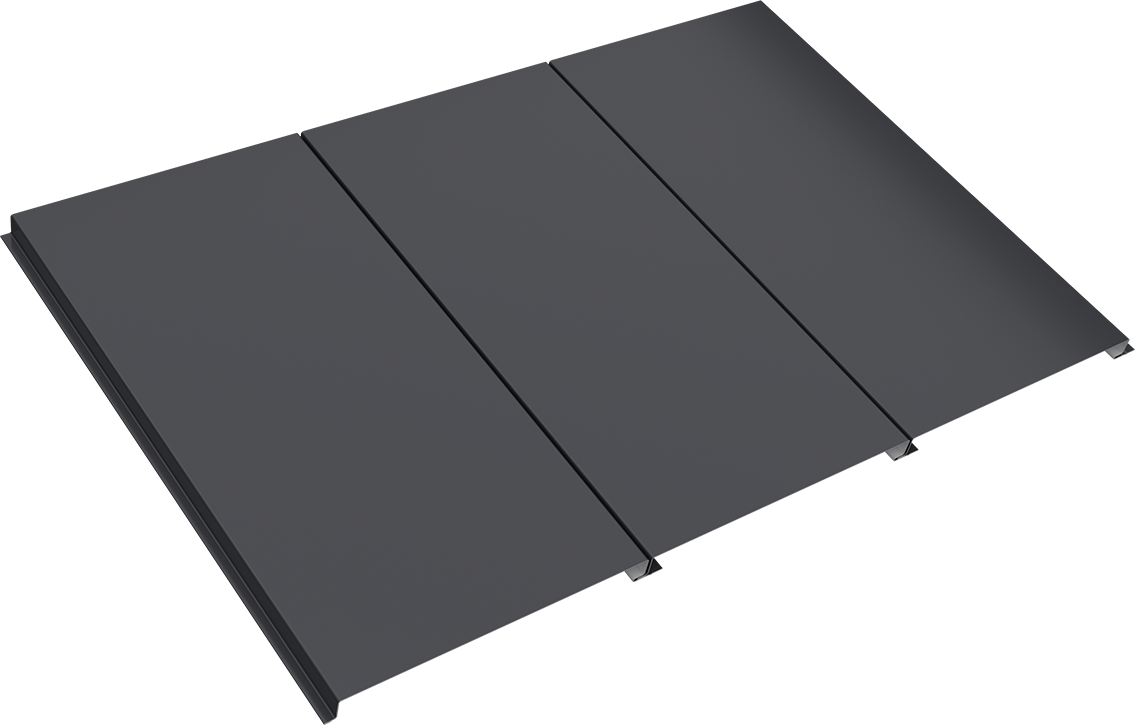

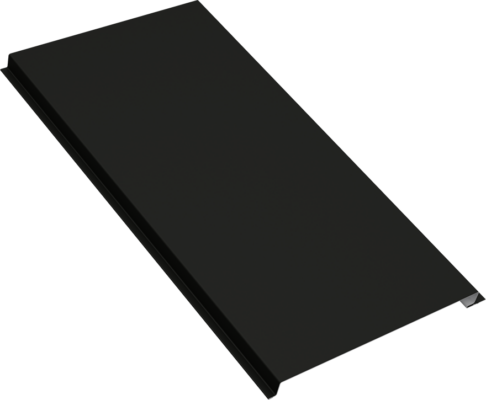

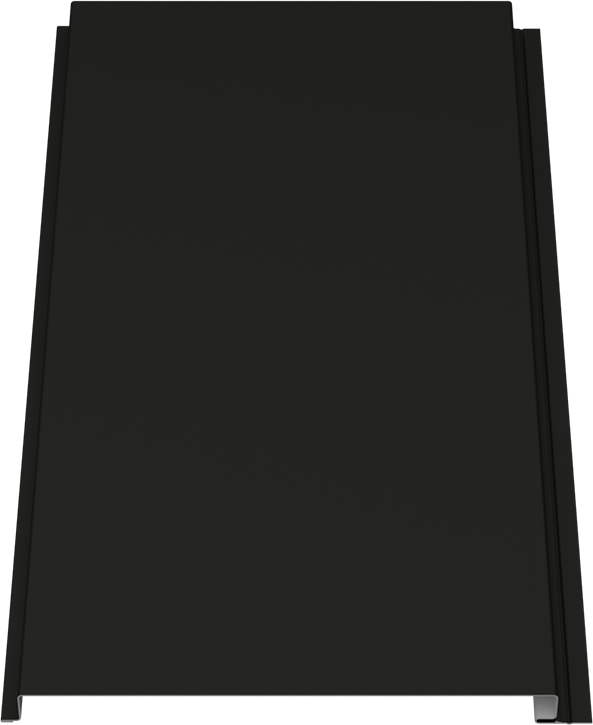

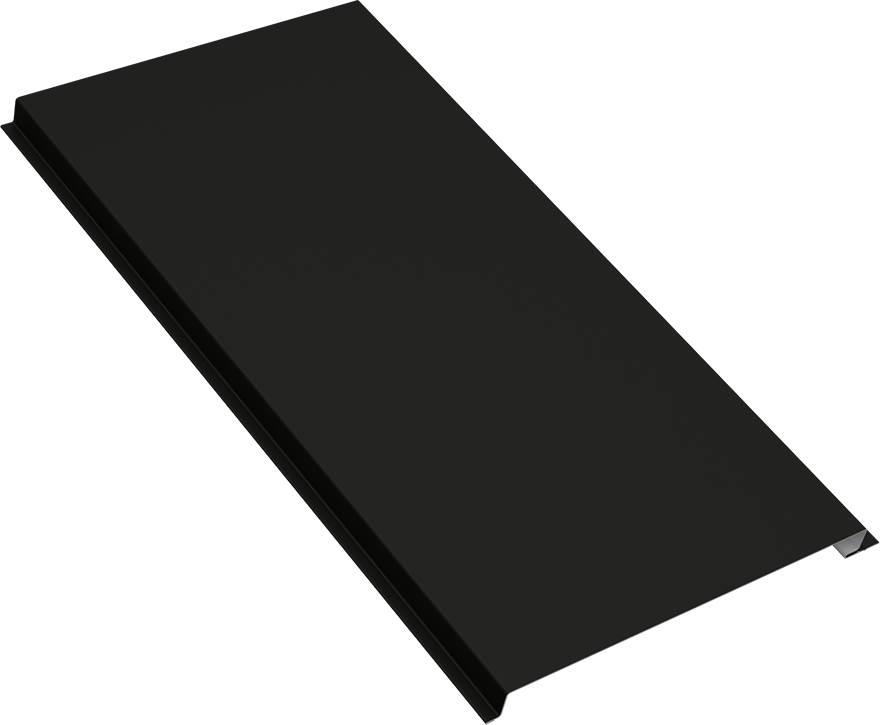

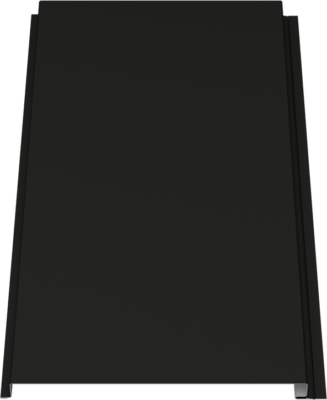

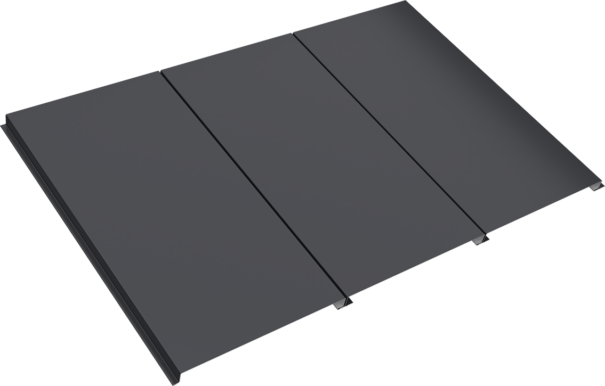

Flush Panel metal siding is a low-profile concealed fastener panel with 12″ coverage. The 1″ panel height is ideal for soffit, fascia, and mechanical screen applications. The panel is available as flat or vented options with pencil ribs.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: N/A
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Screw
- Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), Ul 263 (Fire Resistance), ER 309 Building Code Evaluation Report
- Panel Height: 1″
- Rib Style: Flush (no rib)
- Primary Application: Soffits and Metal Siding
- Standard Configuration: Flat
- Factory Applied Sealant: No
- Optional Configuration: 1 or 2 Pencil Ribs, Vented with 1 or 2 Ribs
- Available Panel Lengths: 5′-0” to 30′-0” (22ga),
5′-0” to 25′-0” (24ga) - Other Options (inquire): N/A
Documents & Resources
Product Resources
- Flush Panel Product Sheet with Load Tables (pdf)
- Flush Panel Dimensions (pdf)
- Flush Panel Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Flush Panel Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: N/A
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Screw
- Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), Ul 263 (Fire Resistance), ER 309 Building Code Evaluation Report
- Panel Height: 1″
- Rib Style: Flush (no rib)
- Primary Application: Soffits and Metal Siding
- Standard Configuration: Flat
- Factory Applied Sealant: No
- Optional Configuration: 1 or 2 Pencil Ribs, Vented with 1 or 2 Ribs
- Available Panel Lengths: 5′-0” to 30′-0” (22ga),
5′-0” to 25′-0” (24ga) - Other Options (inquire): N/A
Documents & Resources
Product Resources
- Flush Panel Product Sheet with Load Tables (pdf)
- Flush Panel Dimensions (pdf)
- Flush Panel Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Flush Panel Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
Colors
Cool DURA TECH™ 5000 (22 & 24 Gauge)
Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.
Cool DURA TECH™ mx (22 & 24 Gauge)
Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.
Cool DURA TECH™ nt (26 Gauge)
Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.
No available colors in this category.
Premium Colors (24 & 26 Gauge)
Unpainted Products (26 - 20 Gauge)
Uncoated and Unpainted Products (22 Gauge)
No available colors in this category.
Specialty Finishes and Custom Colors
AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.
