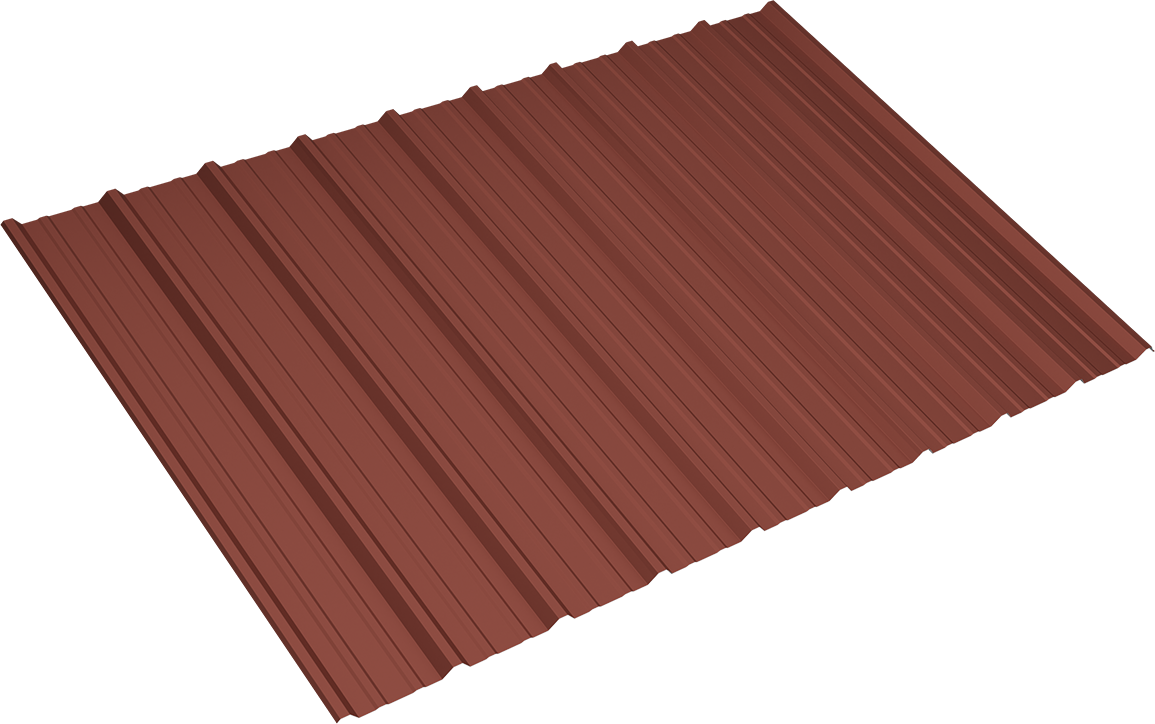

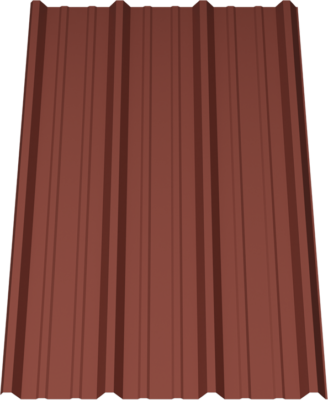

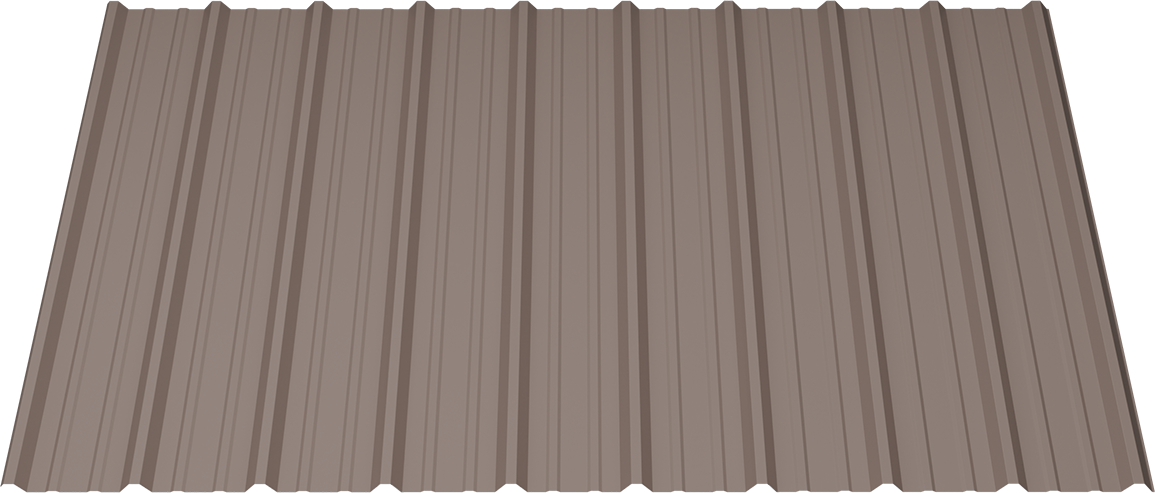

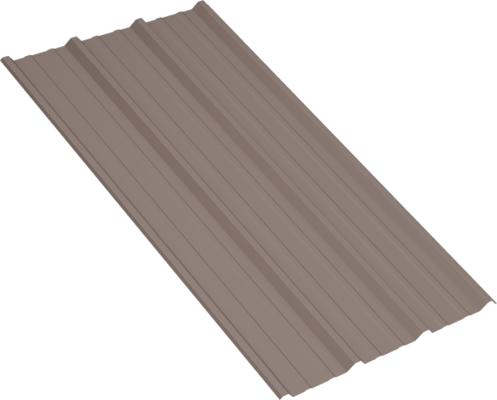

PBR Panel metal roofing & siding is an exposed fastener panel with a 36″ coverage. The traditional ribbed style and 1 1/4″ panel height is suitable for industrial and agricultural applications. The panel is also available in a reversed form for metal siding applications.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Exposed fastener metal roofing or siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 36″
- Metal Thickness (Gauge): 26, 24, 22
- Minimum Slope: 1:12
- Orientation: Horizontal or Vertical
- Paint System: Dura Tech™ nt (SMP – 26ga), Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Exposed Screw
- Performance Certification: ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), UL263 (Fire Resistance), UL 790 (Class A Fire Rated), ER 550 Building Code Evaluation Report
- Panel Height: 1 1/4″
- Rib Style: Traditional Ribbed
- Primary Application: Industrial and Agricultural Siding
- Standard Configuration: As shown
- Factory Applied Sealant: No
- Optional Configuration: Reversed
- Available Panel Lengths: 6”-0” to 50”-0”
- Other Options (inquire): Perforation, Stucco Embossed
Documents & Resources
Product Resources
- PBR Panel Product Sheet with Load Tables (pdf)
- PBR Panel Dimensions (pdf)
- Commercial and Industrial Installation Guide (pdf)
- Commercial and Industrial Trim and Flashing Guide (pdf)
- Commercial and Industrial Trim and Flashing Details (pdf)
- Commercial and Industrial Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0550)
Product Option and Accessory Resources
- Perforation Data Sheet (pdf)
- Fastener Selection Guide (pdf)
- AEP Span Underlayment HT (pdf)
- Polycarbonate Skylight Panels (pdf)
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Commercial and Industrial Color Chart (Dura Tech™ nt) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Exposed fastener metal roofing or siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 36″
- Metal Thickness (Gauge): 26, 24, 22
- Minimum Slope: 1:12
- Orientation: Horizontal or Vertical
- Paint System: Dura Tech™ nt (SMP – 26ga), Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Exposed Screw
- Performance Certification: ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration), UL263 (Fire Resistance), UL 790 (Class A Fire Rated), ER 550 Building Code Evaluation Report
- Panel Height: 1 1/4″
- Rib Style: Traditional Ribbed
- Primary Application: Industrial and Agricultural Siding
- Standard Configuration: As shown
- Factory Applied Sealant: No
- Optional Configuration: Reversed
- Available Panel Lengths: 6”-0” to 50”-0”
- Other Options (inquire): Perforation, Stucco Embossed
Documents & Resources
Product Resources
- PBR Panel Product Sheet with Load Tables (pdf)
- PBR Panel Dimensions (pdf)
- Commercial and Industrial Installation Guide (pdf)
- Commercial and Industrial Trim and Flashing Guide (pdf)
- Commercial and Industrial Trim and Flashing Details (pdf)
- Commercial and Industrial Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0550)
Product Option and Accessory Resources
- Perforation Data Sheet (pdf)
- Fastener Selection Guide (pdf)
- AEP Span Underlayment HT (pdf)
- Polycarbonate Skylight Panels (pdf)
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Commercial and Industrial Color Chart (Dura Tech™ nt) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
Colors
Cool DURA TECH™ 5000 (22 & 24 Gauge)
Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.
Cool DURA TECH™ mx (22 & 24 Gauge)
Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.
Cool DURA TECH™ nt (26 Gauge)
Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.
Premium Colors (24 & 26 Gauge)
No available colors in this category.
Unpainted Products (26 - 20 Gauge)
Uncoated and Unpainted Products (22 Gauge)
No available colors in this category.
Specialty Finishes and Custom Colors
AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.
