Aluminum is Ideal for Coastal Environments

Aluminum Metal Roofing and Siding

Aluminum Metal Roofing and Siding

Aluminum is offered in our most popular metal roofing and siding panels for projects in coastal or other corrosive environments. Aluminum is proven to offer outstanding corrosion resistance as the material naturally develops a durable oxide film when exposed to air and is nearly impervious to further corrosion.

Available in all standard or custom colors and paint systems.

Features and Benefits of Aluminum Roofing and Siding

  • Pre-painted aluminum in .040″ and .032″ thicknesses.
  • Third-party tested, exceeding industry testing standards.
  • 40-year Finish Warranty offered in an unlimited selection of colors. (Dura Tech™ PVDF paint system).
  • 20 and 15-year Marine Environment Warranties available.
  • Weathertight Warranty available (roof application only).
  • Minimum order requirements and longer lead times apply.
Aluminum Metal Roofing and Siding

Aluminum Product Sheet PDF | RTF

Architectural Standard Color Chart PDF | RTF

Dissimilar Metals Cheat Sheet PDF | RTF

Not only is aluminum beautiful but it’s also long-lasting and sustainable.
According to The Aluminum Association, “Aluminum can be recycled directly back into itself over and over again in a true closed loop.”

Browse Aluminum Metal Roofing and Siding Products Below

16 Span-Lok hp metal roofing is offered in pre-painted aluminum. With an unlimited selection of colors to choose from, Aluminum Span-Lok™ hp metal roofing offers the performance of a standing seam panel with outstanding corrosion protection. Factory swaged panels available.

Aluminum .040″ is available by special order in any color. For faster delivery, .040″ is stocked in Matte Black and Regal White only.
Material is painted on both sides. One side is Matte Black and the other is Regal White.

Span-Lok™ hp Metal Roofing
Choose Span-Lok HP metal roofing for a durable, weather-tight design with an architectural standing seam roof panel that is ideal for multipurpose projects.
Span-Lok™ hp Metal Roofing
Architectural Standing Seam roofing provides you with a strong, weather-resistant metal roof panel which offers the benefits of an architectural standing seam roof and an easy-to-install design.

This panel has a mechanically seamed 2” high rib, which provides aesthetic appeal as well as a weather-tight design. Aluminum 16″ Span-Lok hp metal roofing panel has also been third-party tested, exceeding industry testing standards.

Features & Benefits

  • 16″ coverage metal roof panel.
  • Stocked in .040″ aluminum Matte Black and Regal White only. Material is painted on both sides. One side is Matte Black and the other is Regal White. Inquire with your outside sales representative for other standard and custom colors.
  • Minimum recommended slope 1/2″:12″.
  • Thickness: .040″ aluminum. (Flat sheet also available).
  • Custom manufactured panel lengths: 6′-0″ to 40′-0″.
  • Panel is acceptable for use in vertical metal siding applications.
  • Subtle striations standard on 16″ panels. (Flat pan offered by request).
  • Factory-applied sealant is standard.
  • Stucco Embossing option available for an additional charge.
  • Panel available with 2 pencil ribs.
  • Factory notching available.
  • Factory swaged panels available.
  • Field mechanically seamed panel.
  • High performance stainless steel clips available to meet wind loads.
  • Wind uplift tested in accordance with ASTM E1592. Has been tested for air infiltration per ASTM E1680, and water infiltration per ASTM E1646.
  • Roof assemblies Class A Fire Rated when installed on non-combustible deck or framing per IBC or IRC, or when installed in accordance to UL listings (UL790).
  • Weathertightness Warranty available. Minimum slope required. AEP Span Underlayment HT  required for all Full System Weathertightness Limited Warranties. Contact AEP Span representative for information. (Roof application ONLY).
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

Product Docs

  • Product Sheet (pdf) (rtf)
  • Span-Lok hp 16″ Revit Model (zip)
  • Guide Specifications (pdf) (doc)
  • AEP Span Underlayment HT (pdf) (rtf)
  • Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf) (rtf)
  • Click here for documents on LEED and LBC Certification.

Green Spec Docs

Installation Docs

  • Aluminum Design Guide and Installation Supplement (pdf) (rtf)
  • Span-Lok hp w/ 2.5” Clip Installation Guide (pdf) (rtf)
  • Span-Lok hp w/ 2.5” Clip AutoCAD and PDF details (zip)
  • Span-lok hp w/ Low Clip Installation Guide (pdf) (rtf)
  • Span-lok hp w/Low Clip AutoCAD details (dwg)

Warranties

  • Aluminum Dura Tech® 5000/Dura Tech mx Warranty (pdf) (rtf)
  • Standard Side Seam Weathertight Warranty (pdf)
  • Standard Full System Weathertight Warranty (pdf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

Prestige Series® metal siding is a concealed fastener panel perfect for clean and distinctive designs. This panel can be used for exterior and interior siding, fascia, equipment screens, soffit, and as a ceiling panel.

Aluminum .040″ is available by special order in any color. For faster delivery, .040″ is stocked in Matte Black and Regal White only.
Material is painted on both sides. One side is Matte Black and the other is Regal White.

This long-lasting, durable, and sustainable metal panel can be installed horizontal or vertical to meet your design needs. Prestige Series offers architects and building owners a unique yet flexible design when combined with other building materials.

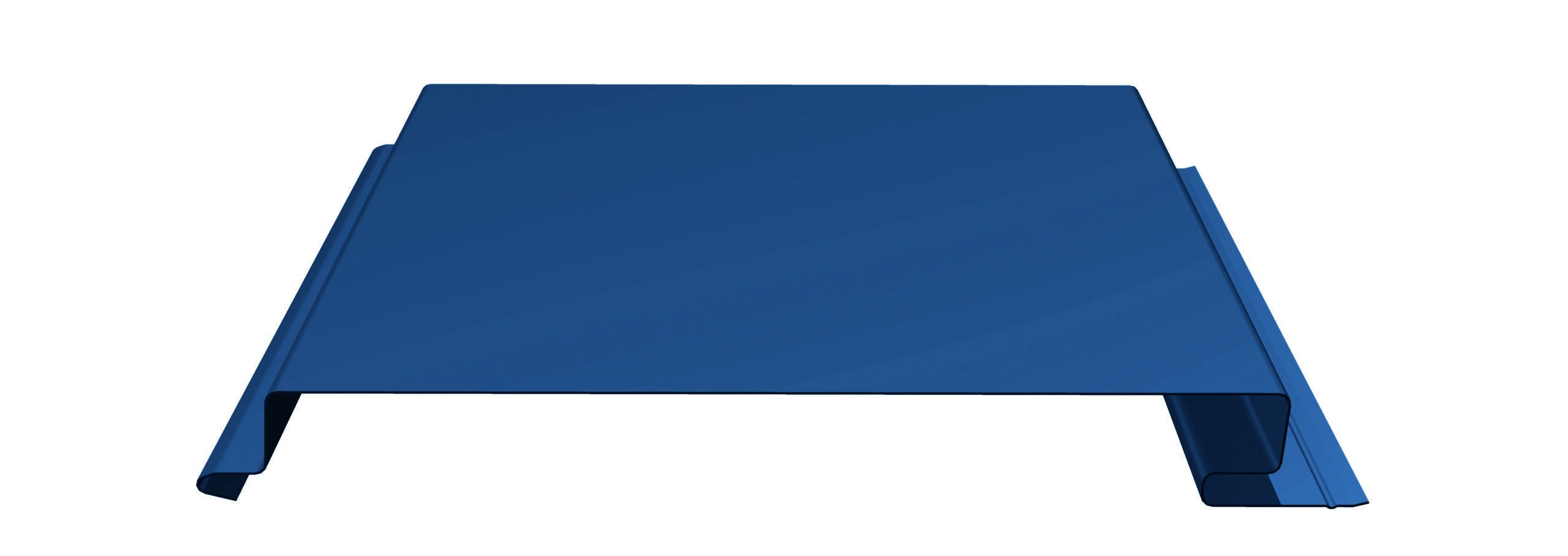

Prestige Series 12 inch No Reveal in a Regal Blue
AEP Span's 12'' coverage metal siding from the prestige series offers unique and interchangeable concealed fastener panels for flexible and distinctive design.

Features & Benefits

  • 12″ coverage metal siding.
  • Stocked in .040″ aluminum Matte Black and Regal White only. Material is painted on both sides. One side is Matte Black and the other is Regal White. Inquire with your outside sales representative for other standard and custom colors.
  • Metal siding installation: Horizontal or Vertical.
  • Thickness: .040″ aluminum. (Flat sheet also available).
  • Custom manufactured metal siding lengths: 6′-0″ to 25′-0″.
  • Factory applied sealant is a standard offer.
  • Available with 1 or 2 pencil ribs.
  • Available with wave pattern.
  • Perforation PDF | RTF options available for an additional charge on .040″ material.
  • Stucco Embossing option available for an additional charge.
  • High performance aluminum clips available to meet wind loads.
  • Testing: ASTM E1592 (wind uplift), ASTM E283 (air infiltration) and ASTM E331 (water infiltration). All testing performed by accredited third-party.
  • All structural performance data is contained within Building Code Approval Report.
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

Product Docs

  • Product Guide/Load Tables (pdf) (rtf)
  • Prestige Series Revit Model (zip)
  • Guide Specifications (pdf) (doc)
  • PS12 Clip Technical Bulletin (pdf) (rtf)
  • Perforation Data Sheet (pdf) (rtf)
  • Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf) (rtf)

Green Spec Docs

Installation Docs

  • Prestige Series Horizontal Installation Guide (pdf) (rtf)
  • Prestige Series Vertical Installation Guide (pdf) (rtf)
  • All AutoCAD and PDF details (zip)

Warranties

  • Aluminum Dura Tech® 5000/Dura Tech mx Warranty (pdf) (rtf)
  • Standard Side Seam Weathertight Warranty (pdf)
  • Standard Full System Weathertight Warranty (pdf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

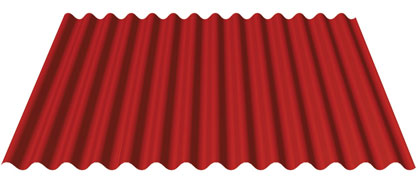

Nu-Wave® Corrugated metal roofing and siding is a classic 7/8” exposed fastener metal panel suited for siding and roof applications. This metal roofing and siding panel is used in a variety of designs ranging from country to modern as well as in some roof designs with optional factory curving.

Nu-Wave® Corrugated Metal Wall and Metal Roof Panels
Offered factory curved
Nu-Wave® Corrugated Metal Wall and Metal Roof Panels
Nu-Wave Corrugated metal roofing and siding by AEP Span is a classic exposed fastened metal panel suited for wall and roof applications.

With this long-lasting, durable, and sustainable metal panel, you’ll also find the flexibility and adaptability of corrugated metal easy to work with. Nu-Wave® Corrugated also offers a unique yet flexible design when combined with other building materials.

Features & Benefits

  • 32″ coverage metal roof panel.  34 2⁄3″ coverage metal siding panel.
  • Minimum recommended slope 3:12.  (roof applications – AEP Span Underlayment HT  PDF | RTF available).
  • Thickness: .040″ and .032″ aluminum. (Flat sheet also available).
  • Custom manufactured panel lengths: 6′-0″ to 22′-0″.
  • Perforation PDF | RTF options available for an additional charge on .040″ material.
  • Available smooth curved to a minimum of 3′ radius.
  • High performance stainless steel clips available to meet wind loads.
  • Matching polycarbonate panels available. PDF
  • Testing: ASTM E1680 (air infiltration) and ASTM E1646 (water infiltration). All testing performed by accredited third-party.
  • All structural performance data is contained within Building Code Approval Report
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

Product Docs

  • Product Guide/Load Tables (pdf) (rtf)
  • Polycarbonate Product Sheet (pdf)
  • Nu-Wave Corrugated Revit Model (zip)
  • Guide Specifications (pdf) (doc)
  • Perforation Data Sheet (pdf) (rtf)
  • AEP Span Underlayment HT (pdf) (rtf)
  • ⇒Click Here for Building Code Approval Reports.

Green Spec Docs

Installation Docs

Warranties

  • Aluminum Dura Tech® 5000/Dura Tech mx Warranty (pdf) (rtf)
  • Standard Side Seam Weathertight Warranty (pdf)
  • Standard Full System Weathertight Warranty (pdf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

It is predominantly used in commercial, hotel, industrial, retail, and mixed-use applications as well as heavy-duty metal fencing or gates.

HR-36® metal roofing and siding is an exposed fastener panel with a 36″ net coverage. Long-lasting, durable, and sustainable, HR-36 can meet just about any need or look. Designers employ this unique metal siding to create vertical or horizontal configurations.

Exposed fastened panel metal roof
The HR-36 metal roofing and siding feature exposed fastened panels. The unique metal siding can be installed horizontally or vertically.

Features & Benefits

  • 36″ coverage metal roof and metal siding.
  • Metal Siding Installation: Horizontal or Vertical.
  • Minimum recommended slope 1:12.  (roof applications – AEP Span Underlayment HT  PDF | RTF available).
  • Thickness: .040″ and .032″ aluminum. (Flat sheet also available).
  • Custom manufactured panel lengths: 6′-0″ to 22′-0″.
  • Perforation PDF | RTF options available for an additional charge on .040″ material.
  • High performance stainless steel clips available to meet wind loads.
  • Matching polycarbonate panels available. PDF
  • Testing: ASTM E283 (air infiltration) and ASTM E331 (water infiltration). All testing performed by accredited third-party.
  • All structural performance data is contained within Building Code Approval Report.
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

Product Docs

Green Spec Docs

Installation Docs

Warranties

  • Aluminum Dura Tech® 5000/Dura Tech mx Warranty (pdf) (rtf)
  • Standard Side Seam Weathertight Warranty (pdf)
  • Standard Full System Weathertight Warranty (pdf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

It is predominantly used in commercial, hotel, industrial, retail, and mixed-use applications as well as heavy-duty metal fencing or gates.

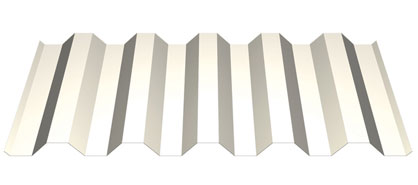

36 inch Reversed Metal Siding
AEP Span's reversed HR-36 metal siding is an exposed fastened panel with a 36″ net coverage.

Reversed HR-36® metal siding is an exposed fastener metal panel with a 36″ net coverage.

Reversed HR-36 is long lasting, durable and sustainable metal siding panel. This unique metal siding panel allows for vertical or horizontal installation configurations.

Features & Benefits

  • 36″ coverage metal roof and metal siding.
  • Metal Siding Installation: Horizontal or Vertical.
  • Minimum recommended slope 1:12.  (roof applications – AEP Span Underlayment HT  PDF | RTF available).
  • Thickness: .040″ and .032″ aluminum. (Flat sheet also available).
  • Custom manufactured panel lengths: 6′-0″ to 22′-0″.
  • Perforation PDF | RTF options available for an additional charge on .040″ material.
  • High performance stainless steel clips available to meet wind loads.
  • Matching polycarbonate panels available. PDF
  • Testing: ASTM E283 (air infiltration) and ASTM E331 (water infiltration). All testing performed by accredited third-party.
  • All structural performance data is contained within Building Code Approval Report.
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

Product Docs

  • Product Guide/LoadTables (pdf) (rtf)
  • Polycarbonate Product Sheet (pdf)
  • Reversed HR-36 Revit Model (zip)
  • Guide Specifications (pdf) (doc)
  • ⇒Click Here for Building Code Approval Reports.

Green Spec Docs

Installation Docs

Warranties

  • Aluminum Dura Tech® 5000/Dura Tech mx Warranty (pdf) (rtf)
  • Standard Side Seam Weathertight Warranty (pdf)
  • Standard Full System Weathertight Warranty (pdf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

It is predominantly used in commercial, hotel, industrial, retail, and mixed-use applications as well as heavy-duty metal fencing or gates.

As your single-source vendor, we are committed to offering you quality products and outstanding service to help you meet your project needs.

  • For faster delivery, .040″ is stocked in Matte Black and Regal White only. Material is painted on both sides. One side is Matte Black and the other is Regal White. Inquire with your outside sales representative for other standard and custom colors.
  • .040″ and .032″ flat sheet available in 48″ width sheets.
  • Perforation PDF | RTF options available for an additional charge on .040″ material.

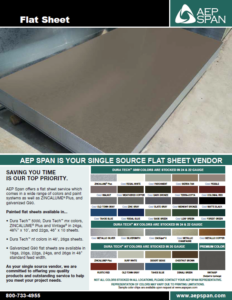

Flat Sheet PDF

Flat Sheet Product Sheet PDF | RTF

Architectural Color Chart: Standard Colors PDF | RTF

Disclaimer Statement:
Aluminum flat sheet is produced at a target flatness of 15 I-Units maximum and is not intended for use in automated manufacturing processes. ASC Profiles disclaims any and all representations and warranties when an aluminum flat sheet is used in automated manufacturing processes and further disclaims any and all liability for such use.

Contact your outside sales representative for pricing, availability and lead times or use the contact form below.
