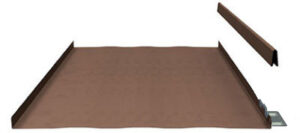

Select Seam® Narrow Batten metal roofing is a performance-rated, non-structural concealed fastener panel in 12″, 16″, & 21 1/4″ coverages. The standing seam panel has a narrow batten attachment with a 1″ panel height ideal for commercial and architectural roofing applications. The panel is available as a flat pan or striated option.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal roofing (standing seam)
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″, 16″, 21 1/4″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: 3:12
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Clip
- Performance Certification: UL 580 (Class 90 Wind Uplift), ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration – with sealant), ER 309 Building Code Evaluation Report
- Panel Height: 1″
- Rib Style: Standing Seam
- Primary Application: Commercial and Architectural Roofing
- Standard Configuration: Striated
- Factory Applied Sealant: Yes
- Optional Configuration: Flat
- Available Panel Lengths: 5′-0″ to 45′-0″
- Other Options (inquire): Stucco Embossed, Curved, Tapered
Documents & Resources
Product Resources
- Select Seam® Product Sheet with Load Tables (pdf)
- Select Seam® Narrow Batten Panel Dimensions (pdf)
- Select Seam® Narrow Batten Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Select Seam® Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal roofing (standing seam)
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″, 16″, 21 1/4″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: 3:12
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Clip
- Performance Certification: UL 580 (Class 90 Wind Uplift), ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration – with sealant), ER 309 Building Code Evaluation Report
- Panel Height: 1″
- Rib Style: Standing Seam
- Primary Application: Commercial and Architectural Roofing
- Standard Configuration: Striated
- Factory Applied Sealant: Yes
- Optional Configuration: Flat
- Available Panel Lengths: 5′-0″ to 45′-0″
- Other Options (inquire): Stucco Embossed, Curved, Tapered
Documents & Resources
Product Resources
- Select Seam® Product Sheet with Load Tables (pdf)
- Select Seam® Narrow Batten Panel Dimensions (pdf)
- Select Seam® Narrow Batten Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Select Seam® Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
