Nu-Wave® Corrugated Metal Roofing and Siding

This slideshow requires JavaScript.

View Color Options

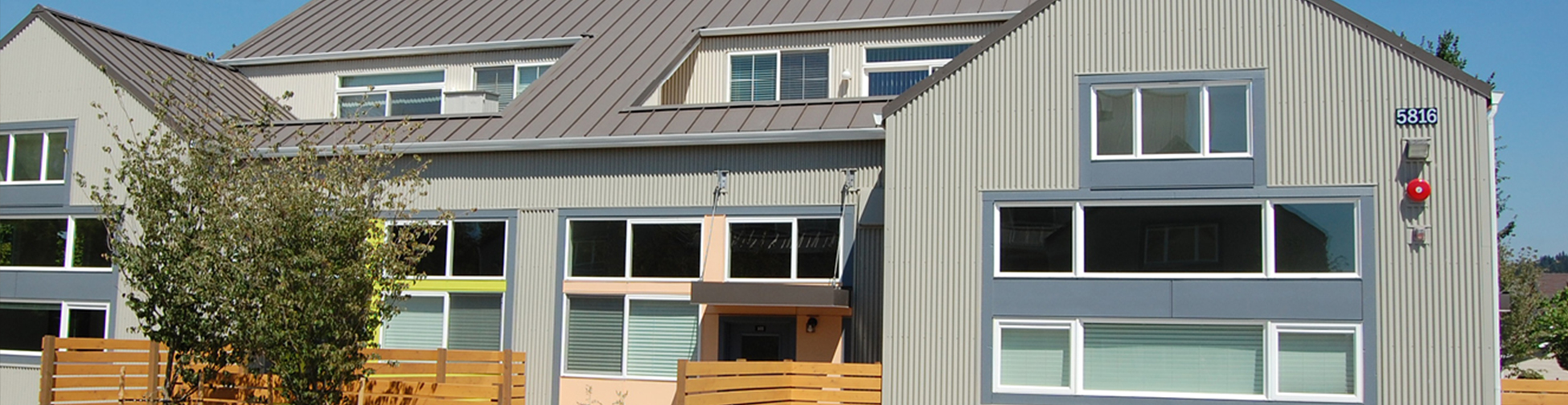

Nu-Wave® Corrugated metal roofing and siding is a classic 7/8” exposed fastened metal panel suited for siding and roof applications. This metal roofing and siding panel is used in civic, education, hospitality, hotels, residential, retail, and mixed-use applications as well as in some roof designs with optional factory curving.

With this long-lasting, durable, and sustainable metal panel, you’ll also find it comes in a wide range of energy-efficient colors and paint systems. Nu-Wave® Corrugated also offers a unique yet flexible design when combined with other building materials.

Genuine Steelscape Steel

AEP-Guide-Large-HomeRoof assemblies are Class A Fire Rated when installed on non-combustible deck or framing per IBC, IRC, or when installed in accordance with UL listings (UL790). Siding assemblies rated for fire resistance (UL263) when installed in accordance with UL listings.

Get Inspired!

Download the AEP Span Product Selection Guide and Color Design Guide.
AEP Span Color and Panel Matrix PDF | RTF

  • 32″ coverage metal roof panel.  34 2⁄3″ coverage metal siding panel.
  • Minimum recommended slope 3:12.  (roof applications – AEP Span Underlayment HT  PDF | RTF available).
  • Gauges: 22ga, 24ga and 26ga in standard finishes and ZINCALUME® Plus.
  • Custom manufactured panel lengths: 6′-0″ to 50′-0″ (Straight) & 6′-0″ to 30′-0″ (Curved).
  • Perforation PDF | RTF options available for an additional charge.
  • Available smooth curved to a minimum of 3′ radius.
  • Matching polycarbonate panels available.
  • Testing: ASTM E1680 (air infiltration) and ASTM E1646 (water infiltration). All testing performed by accredited third-party.
  • All structural performance data is contained within Building Code Approval Report
  • Oil Canning: All flat metal surfaces can display waviness commonly referred to as “oil canning”. “Oil canning” is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection. Oil Canning Technical Bulletin PDF | RTF.

⇒Click Here for Building Code Approval Reports. IAPMO-logo

  • Standard Offer EPD (pdf) (rtf)
  • Domestically Sourced High Recycled Content EPD (pdf) (rtf)
  • HPD 3rd-Party Verified for ZINCALUME® Plus coated products (pdf) (rtf)
  • LEED v3 Regional Material (pdf)
  • LEED v3 Recycled Content Letter (pdf) (rtf)
  • LEED v4 Recycled Content Letter (pdf) (rtf)
  • LEED v4 SS Heat Island Reduction (pdf) (rtf)

⇒Click Here for additional LEED & LBC Information.

  • Dura Tech™ 5000/Dura Tech® mx Warranty (PVDF) (pdf) (rtf)
  • Dura Tech® nt Warranty (pdf) (rtf)
  • ZINCALUME Plus Warranty (pdf) (rtf)
  • AEP Span Color and Panel Matrix (pdf) (rtf)
  • Performance Data (SRI and LRV Values)  (pdf) (rtf)

⇒Click Here for additional Color and Warranty Information.
